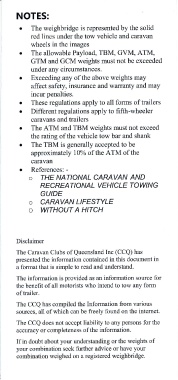

Page 4 - Understanding Weights

NOTES:
o The weighbridge is represented by the solid
red lines under the tow vehicle and caravan
wheels in the images
. The allowable Payload, TBM, GVM, ATM,

GTM and GCM weights must not be exceeded
under any circumstances.
o Exceeding any of the above weights may
affect safety, insurance and warranty and may
incur penalties.
r These regulations apply to all forms of trailers
r Different regulations apply to fifth-wheeler
caravans and trailers
o The ATM and TBM weights must not exceed
the rating of the vehicle tow bar and shank
r The TBM is generally accepted to be
approximately 10% of the ATM of the
caravan
o References: -
o THE NATIONAL CARAVAN AND
RECREATI ONAL V EH ICLE TOWI N G
GUIDE
o CARAVAN LIFESTYLE
O WITHOUT A HITCH

Disclaimer
The Caravan Clubs of Queensland Inc (CCQ) has
presented the information contained in this document in
a format that is simple to read and understand.
The information is provided as an information source for
the benefit of all motorists who intend to tow any form
oftrailer.
The CCQ has compiled the Information from various
sources, all ofwhich can be freely found on the internet.

The CCQ does not accept liability to any persons for the
accuracy or completeness of the information.
Ifin doubt about your understanding or the weights of
your combination seek further advice or have your
combination weighed on a registered weighbridge.
